Alltek Test Card for ULTIMATE MPU

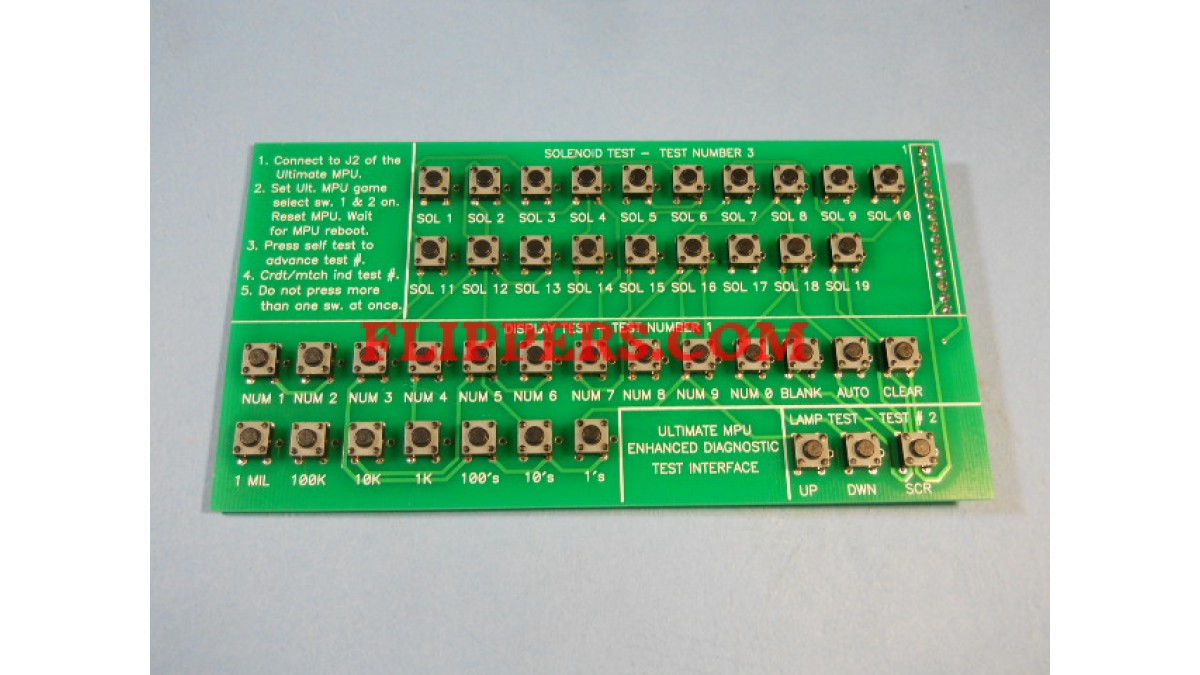

Ultimate Test Card

Diagnose Common Problems Faster Than Ever Before!

Main Features:

• It's so easy to Use! The test card plugs into the J2 connector of The Ultimate MPU Board. Setting the Ultimate MPU's game select dipswitch to Enhanced Diagnostics Mode activates the test.
• Carry it in your toolbox. Actual Size: 3" * 6"
• Manual included or click to download.  Instructions also silk-screened on board.
• Individually labeled switches. No need to memorize anything.
• Improved Solenoid Test - One solenoid can be activated at a time.  No more cycling through all solenoids just to test one!

• Improved Lamp Test - Allow you to activate one lamp at a time.  Useful when you have a couple of lamps out that need to be repaired. Or you can active lamps by rows and columns.
• Improved Display Test - Any digit can be inserted in any display position. Troubleshooting bad digits on a display is now a snap!
• Board plugs onto the Ultimate MPU Board.
• Only one test card needed if you have multiply Ultimate MPU Boards.
• Only works with the Ultimate MPU Board.
