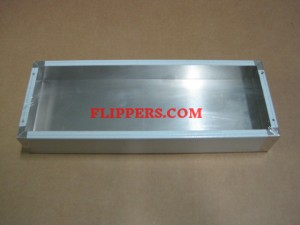

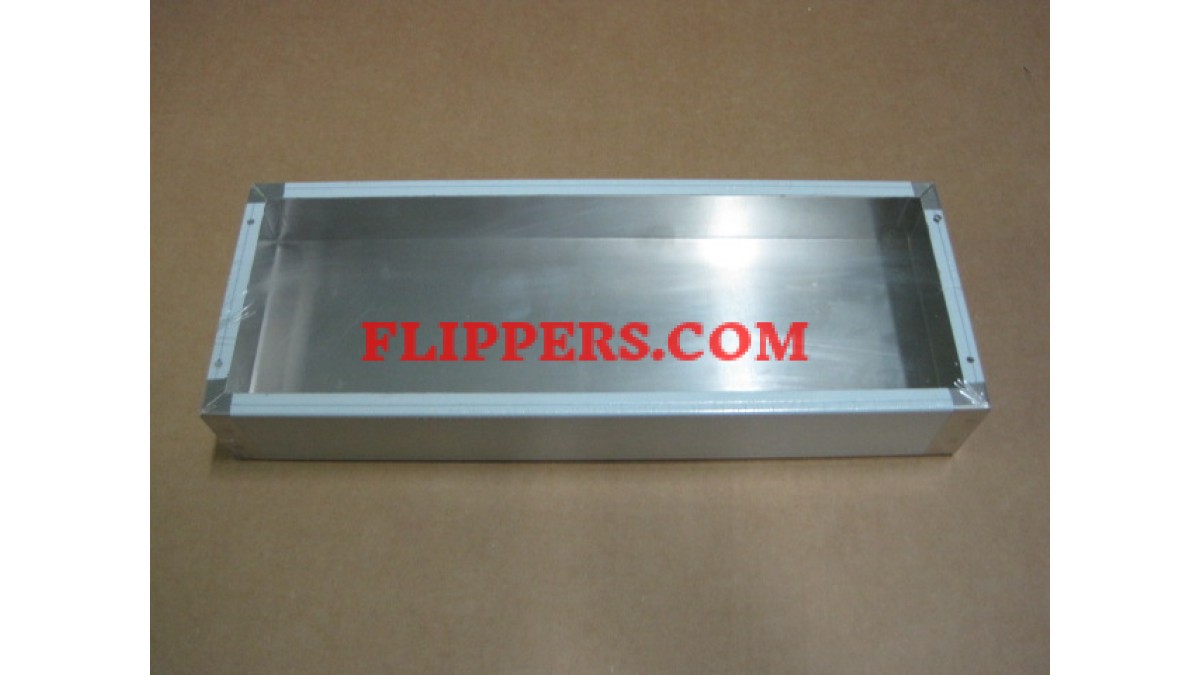

Aluminum Chassis

Key Features:

• Spot welded - heavy duty construction chassis.
• Screws should not be torqued past 4.43 lbf.in ( 50 cN.m).
• Optional bottom plates are punched with 4 holes – 3/16” diameter.
• Bottom plate hardware not provided, please order separately - Part number 1421J6 (Pkg. of 6, 6-32 Philips head screws).
• NOTE: our steel chassis covers (1451 series) are NOT compatible with this series.

Technical Diagram (PDF) 1444-18

Size L x W x H   13.5 in x 5 in x 2 in (343 mm x 127 mm x 51 mm)
Shipping Weight  0.57 lbs (0.26 kg)
RoHS Compliant Yes

Material Aluminum

Color Natural Aluminum
