CONTACT MODULE KLIK-KEY, 20 CONTACTS

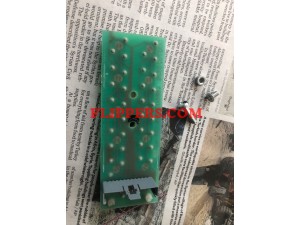

These rubber keypad carbon switch membrane strips are used to replace defective membrane strips in the Wurlitzer keyboard. Works in all machines from around 1989 and on. Note the individual buttons can be separated at the perforation to replace similar switches on the keyboard. Polish the keyboard PCB with a cloth and some rubbing alcohol when apart to improve results.

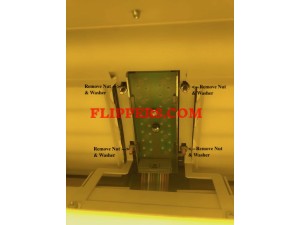

When you have trouble making keyboard selections that is usually the time to replace this keyboard switch strip. Usually the Arrows or the 1 or 0 keys fail first as they get the most use. Note that the numbers should show on the display when you press the buttons, clear numbers with the "R" key (Reset). Instructions are in the product images!
Wurlitzer technical info and parts catalogues are available from this clickable link
Models used in include:
- OMT CD or Vinyl/45RPM
- Carnegie
- New York, NY
- New Orleans
- Rave-On
- Princess
- All CD playing machines
Old part number 0011260001
Alternate number 0012256
CONTACT MODULE KLIK-KEY, 20 CONTACTS
- Brand: Wurlitzer - Germany
- Product Code: 12256
- Availability: In Stock
-
$47.27 CAD
