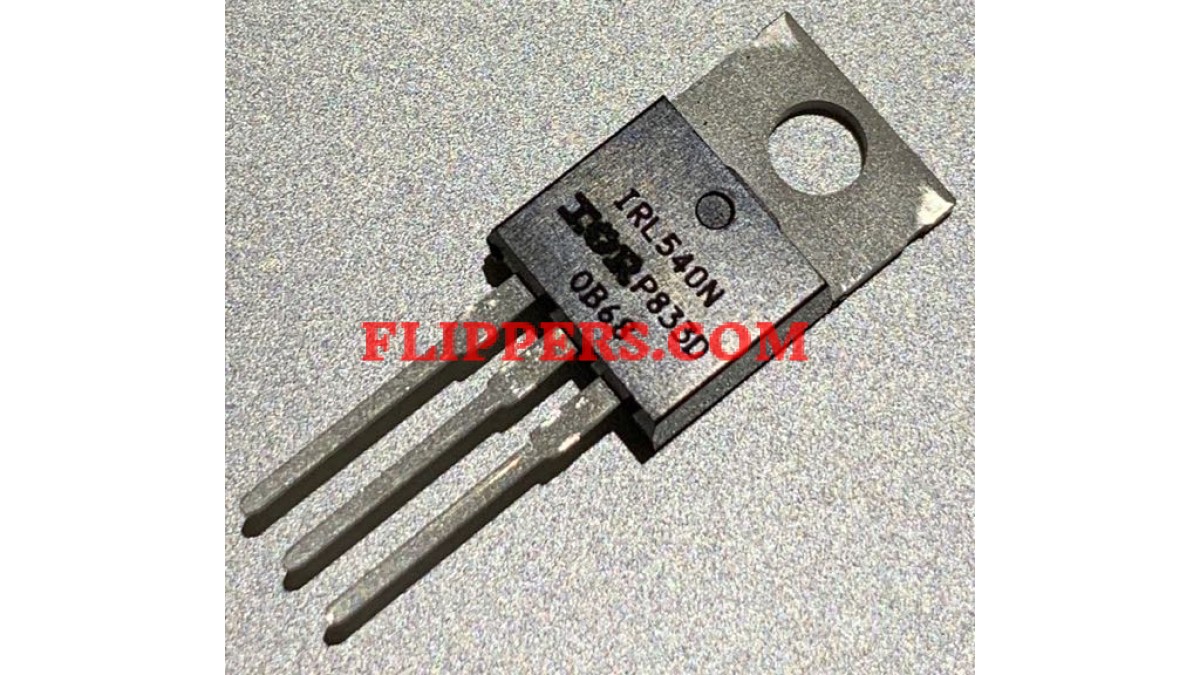

IRL540N MOSFET TRANSISTOR

N-Channel 100V 36A TO220AB body.

Used in positions Q1-Q16 on the I/O power driver board of all Sega/Stern pinball White Star System games.

Reference:

Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	44mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Vgs (Max)	±16V
FET Feature	-
Power Dissipation (Max)	140W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

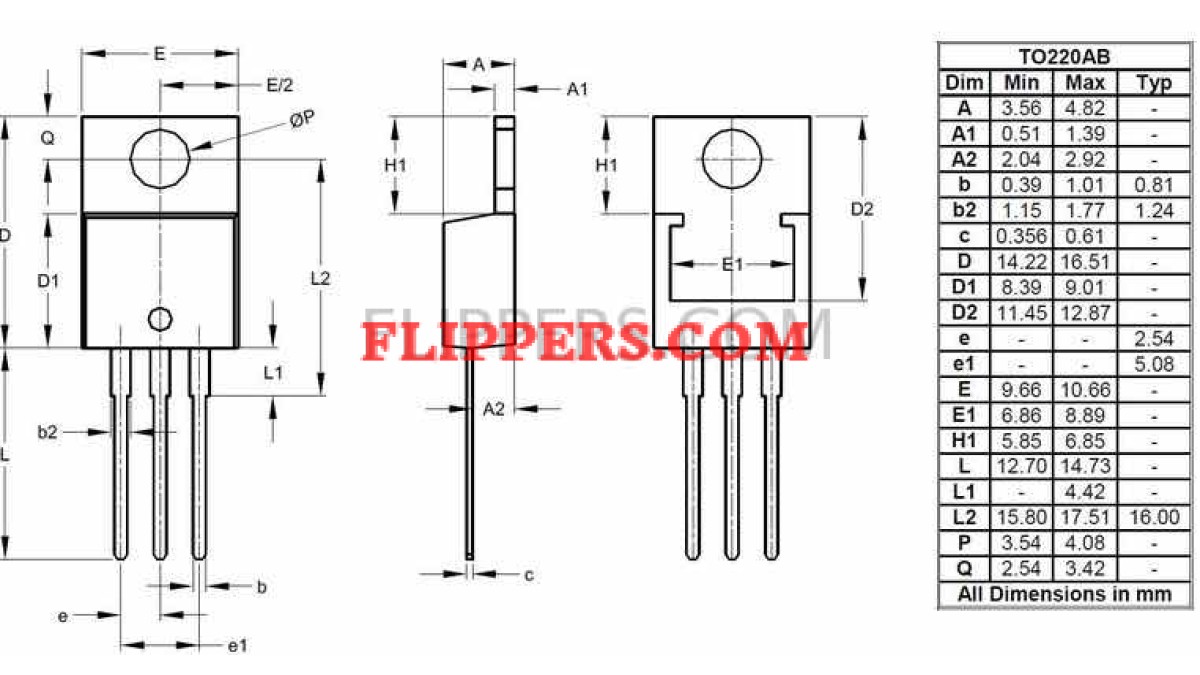

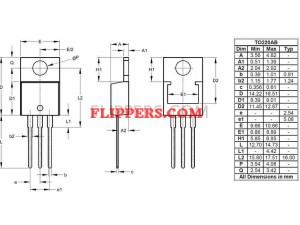

Supplier Device Package	TO-220AB
Package / Case	TO-220-3

Voltage - Collector Emitter Breakdown (Max)

60V

DC Current Gain (hFE)

25/100

Power - Max

40W

Operating Temperature

-65°C ~ 150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-220-3
