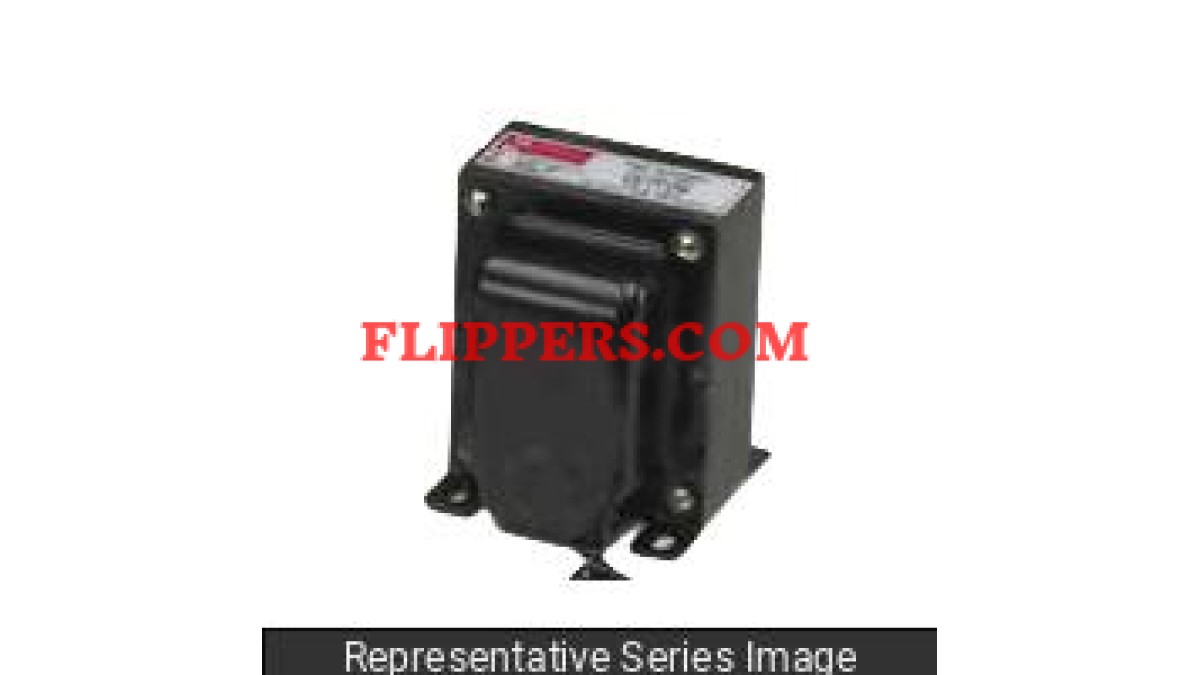

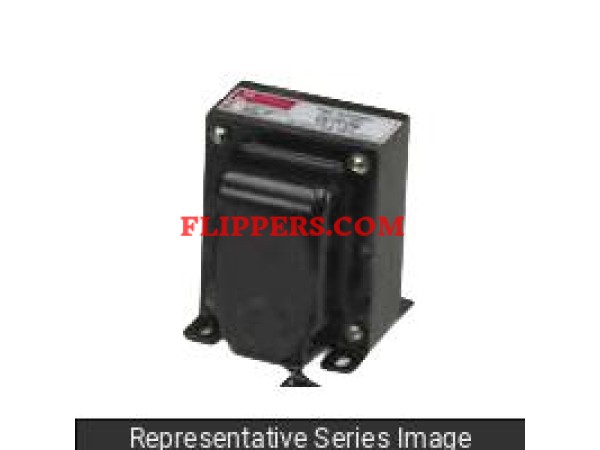

Power Transformer, Low Voltage, Enclosed Chassis Mount, 90VA 115 30VCT
Features
- Primary 115 VAC, 60 Hz.
- All secondaries center tapped, VAC (RMS)
- Enclosed, 4 hole chassis mount.
- Minimum 6" long leads.
- Dual bobbin design - no electrostatic shield required.
- Class B insulation (130 degrees C).
- Hi-Pot test of 2,000V RMS.
- UL listed (# E50394) & CSA certified (209651).
Shipping Weight 2.9 lbs (1.32 kg)
RoHS Compliant Yes
Secondary (RMS) VAC 30 C.T.
Secondary (RMS) Amps 3
Power Transformer, Low Voltage, Enclosed Chassis Mount, 90VA 115 30VCT
- Brand: Hammond Manufacturing Co. LTD
- Model or Part Number: 167M30
- Availability: In Stock
-
$55.95 USD
