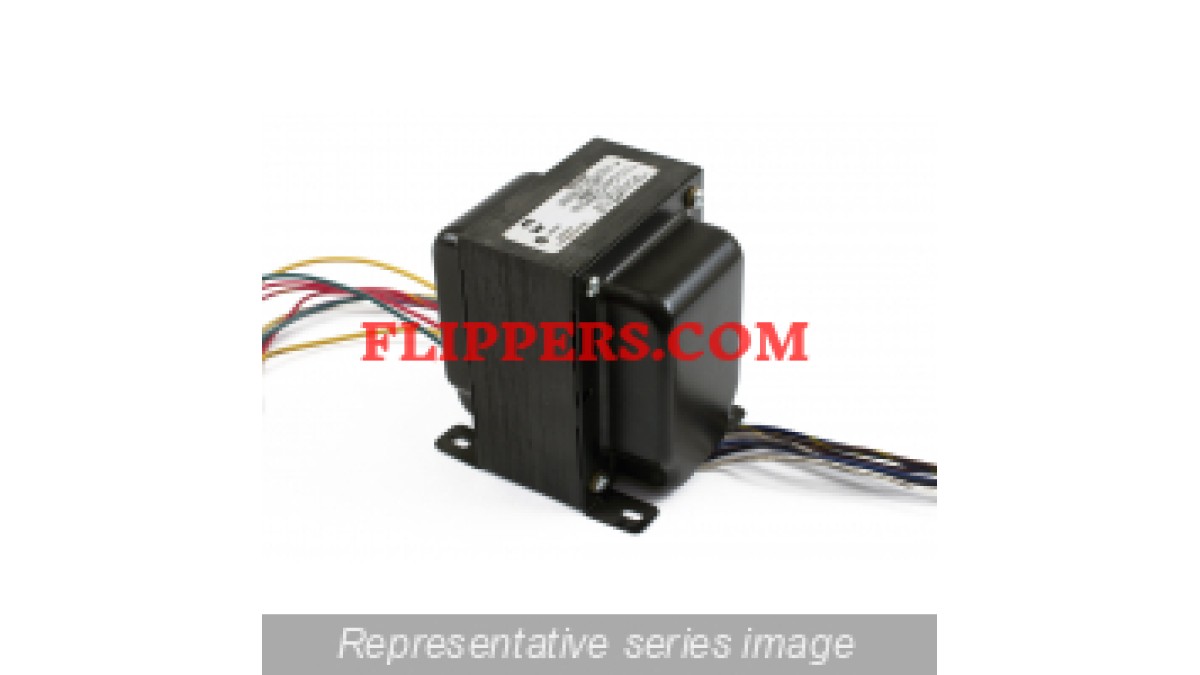

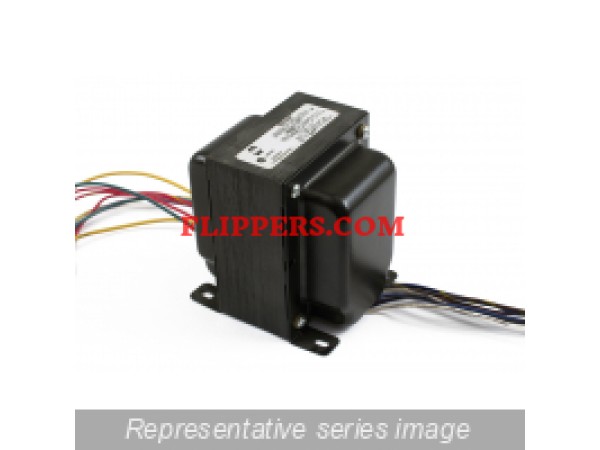

Transformer, High Voltage, 118VA, Primary 115VAC, HV Secondary 550V C.T. @ 144ma.

Features

• Primary 115 VAC, 60 Hz. - except as noted
  • For "universal" primaries and/or 50/60 Hz. operation and other output voltage combinations please see our 300 Series.
• Enclosed, 4 hole, chassis mount.
• Minimum 6" long leads.
• Units can be run full wave bridge or full wave C.T.
• Class A insulation (105 degrees C).
• Hi-Pot test of 2,000V RMS.
• Conservative designs - CSA certified (209651).
• NOTE: A production "running change" has been made to the primary winding - effective with August 2009 production.

Choice #1 (115 VAC Input):

For those customers who need the 115V input - nothing has changed - simply use the White & Gray wires and tape the Black wire

Choice #2 (125 VAC Input):

For those customers who are seeing too high a secondary voltage due to higher primary line voltages (roughly 125V input) - use the White & Black wire and tape the gray wire (see schematic).

NOTE: Most of the "Z" mounts do not apply to choices #1 and #2 above. See their respective drawings for available primary voltages.

CAUTION

NEVER connect power to BOTH the GRAY & BLACK wire - instantaneous destruction of the transformer will result!

Technical Diagram(PDF) 270EX

Shipping Weight 4.5 lbs (2.04 kg)

RoHS Compliant Ye
