  • TRANSISTOR SI NPN BD239C

BD239C Specifications:

  • Transistor Type - NPN
  • Current - Collector (Ic) (Max) - 2 A
  • Voltage - Collector Emitter Breakdown (Max) - 100 V
  • Vce Saturation (Max) @ Ib, Ic - 700mV @ 200mA, 1A
  • Current - Collector Cutoff (Max) - 300µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce - 15 @ 1A, 4V
  • Power - Max 30 W
  • Operating Temperature - 150°C (TJ)
  • Package / Case - TO-220-3

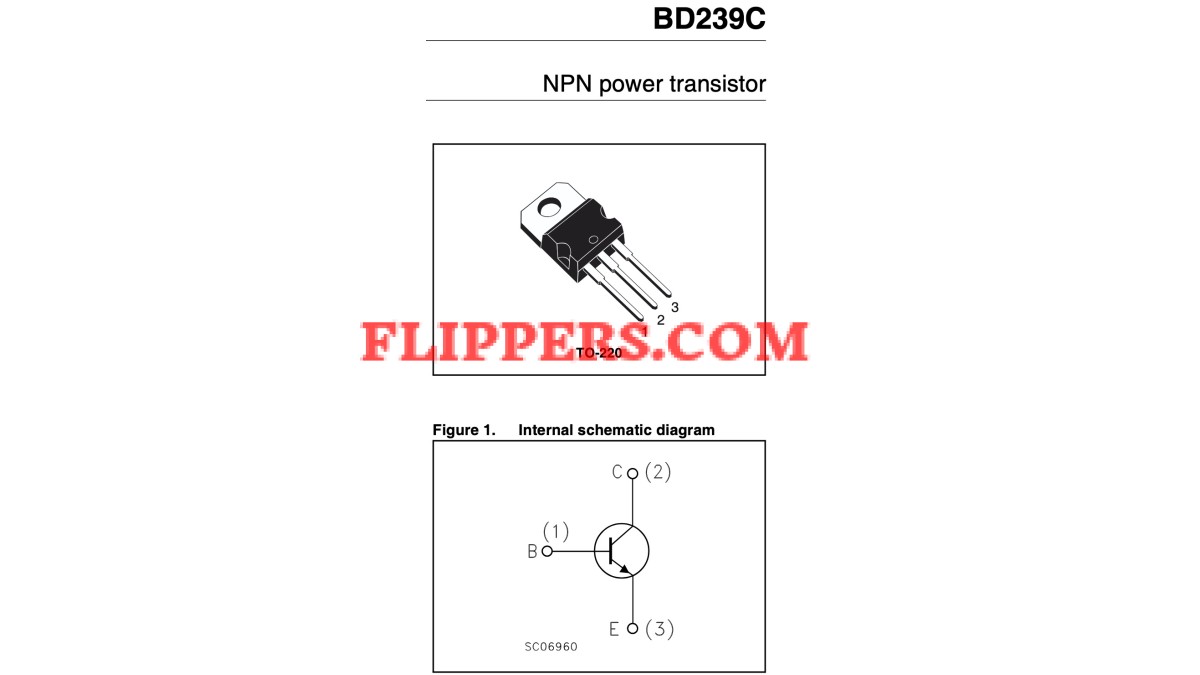

Also is a substitute transistor for the expensive and likely counterfeit MPSU07 (MPS-U07) transistors you will find on various sources. Note the pin-out for the legs is different on the MPSU07 compared to the BD239!


TRANSISTOR SI NPN BD239C

  • Brand: Misc.
  • Model or Part Number: BD239D
  • Availability: In Stock
  • $7.95 USD
