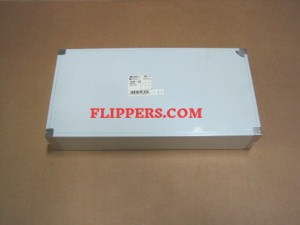

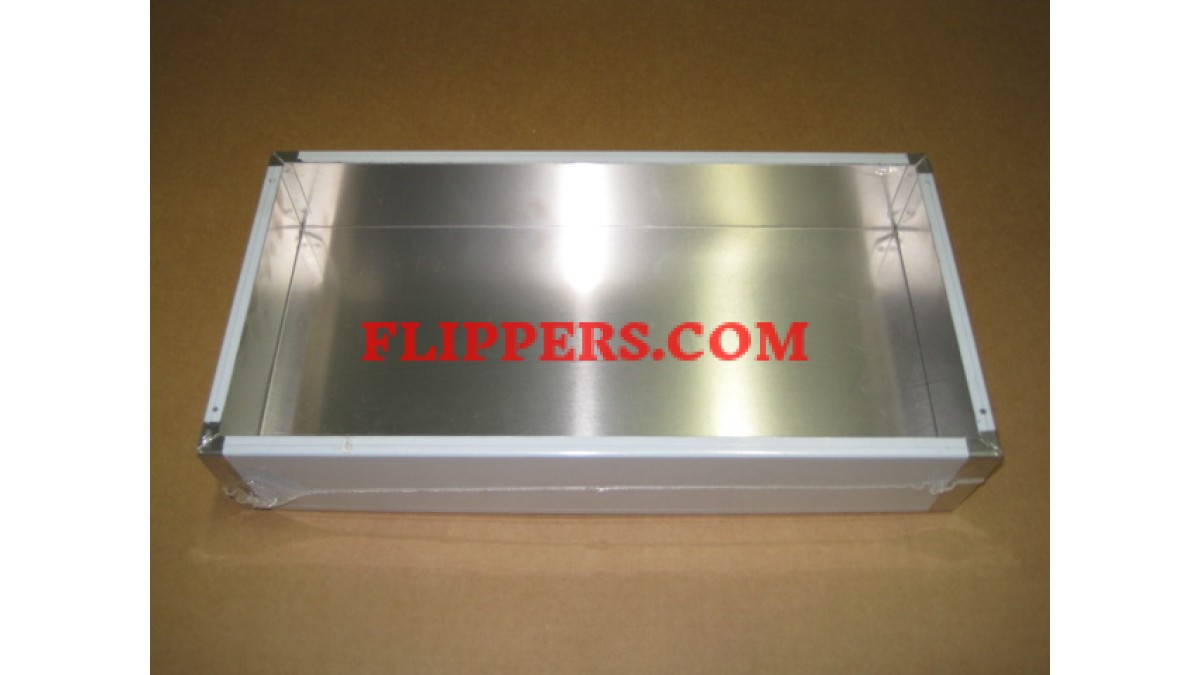

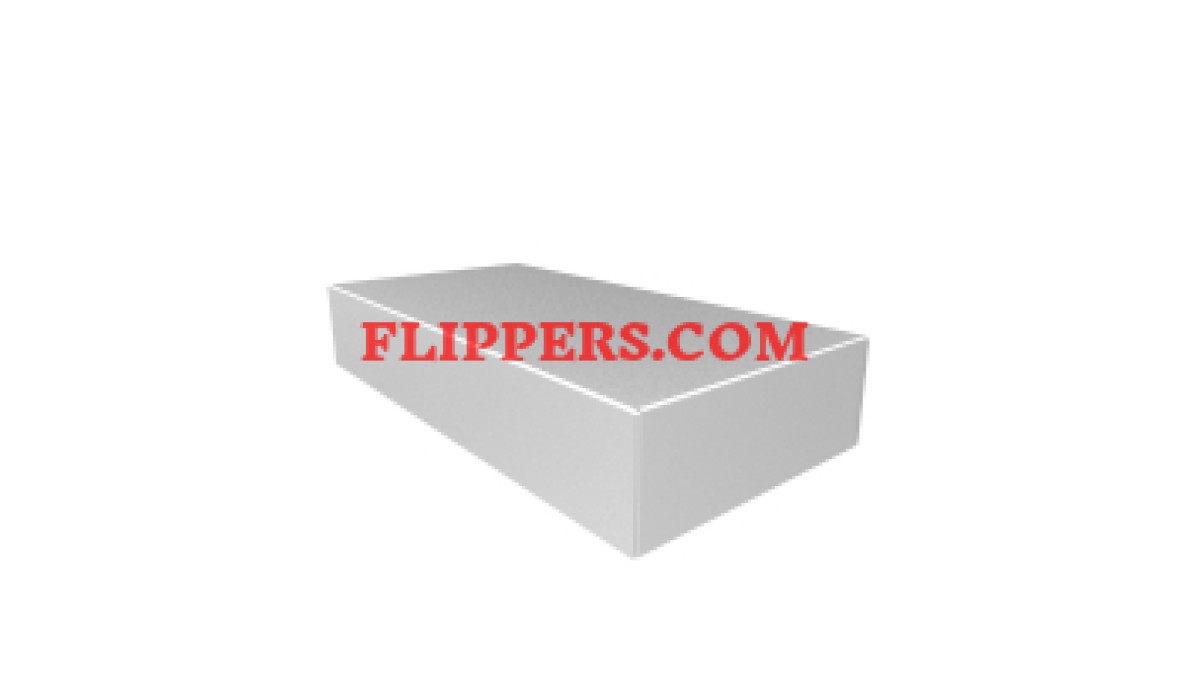

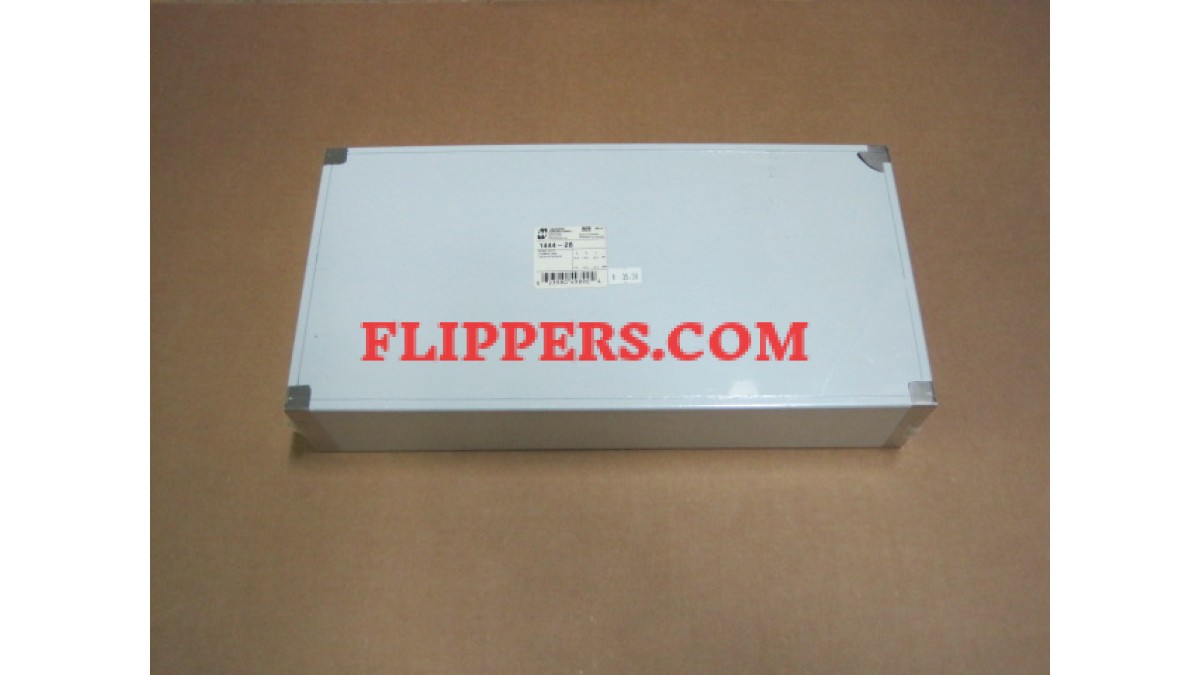

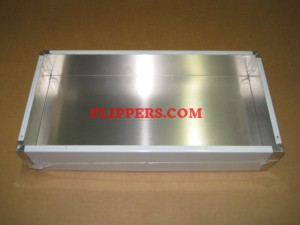

Aluminum Chassis

Key Features:

• Spot welded - heavy duty construction chassis.
• Screws should not be torqued past 4.43 lbf.in ( 50 cN.m).
• Optional bottom plates are punched with 4 holes – 3/16” diameter.
• Bottom plate hardware not provided, please order separately - Part number 1421J6 (Pkg. of 6, 6-32 Philips head screws).
• NOTE: our steel chassis covers (1451 series) are NOT compatible with this series.

Technical Diagram (PDF) 1444-28

Size L x W x H   16 in x 8 in x 3 in   (406 mm x 203 mm x 76 mm)
Shipping Weight   1.39 lbs (0.63 kg)
RoHS Compliant Yes

Material Aluminum

Color Natural Aluminum

Click Here For Product Info
