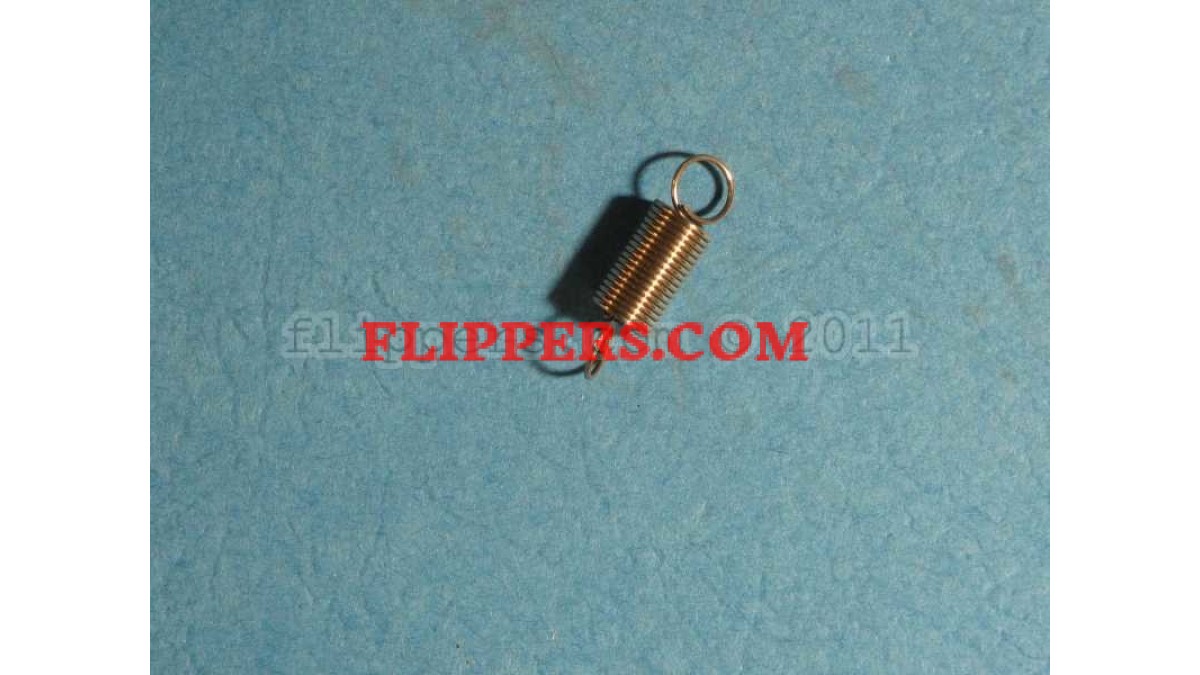

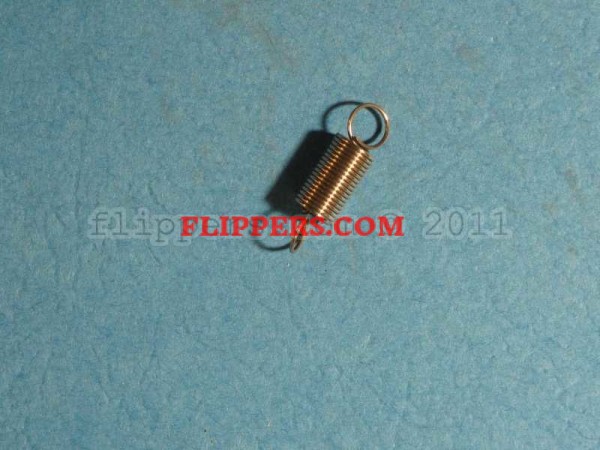

  • Standard Spring - AS Relay

Used in the AS (ten step ratchet) relay.

This A-8737 is weaker than the A-9272 (red) spring.

Remove turns one at a time if the AS relay doesn't step reliably.

Note do NOT go fewer than 15 turns.

Make sure the wipers are lubricated with a silicone electrical spray if it doesn't work smoothly.

Specs:

   A9272                                             A8737
     0.020               wire size              0.020
     3/8"                  solid height       7/16"
     3/16"                ID                        3/16"
    10oz@1.125"   pull                     7.5oz
    18*                     turns                  22
*was 15 turns before 3/67

Standard Spring - AS Relay

  • Brand: Gottlieb ™
  • Model or Part Number: A8737
  • Availability: In Stock
  • EUR 2.13€
