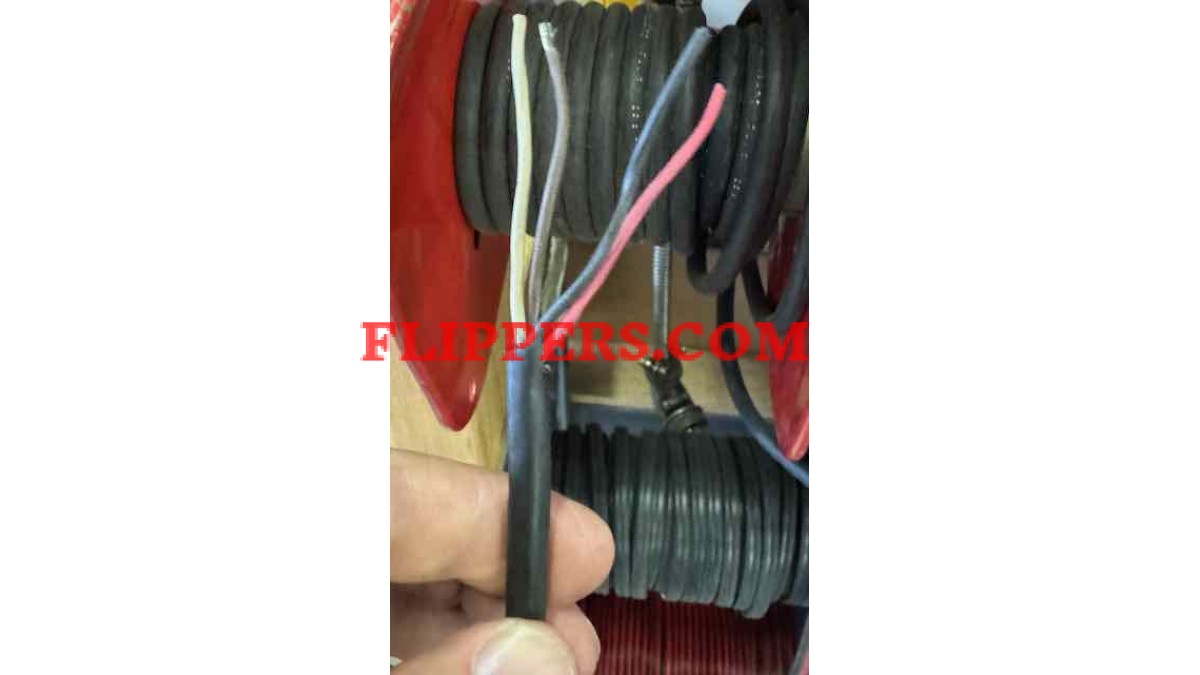

  • Belden 8454 four conductor wire per foot

Price is per foot (30.5cm).

This was the 4-conductor wire used mostly in the late 40s and 50s AMI jukeboxes for connecting between the transformer box and the carriage assembly using a small four-pin plug.

Original specs of this Belden wire, that is rather hard to find these days as it is no longer in production:

  • 4 conductor
  • Wire Gauge - 18 AWG
  • Conductor Strand - 41/34
  • Conductor Material  Copper - Tinned
  • Jacket (Insulation) Material - Rubber
  • Jacket (Insulation) Diameter - 0.265" (6.73mm)
  • Conductor colour codes Black, Red, White, and Green

Used in the following brands:

  • AMI/Rowe jukeboxes 1940s through late 50s
  • Rockola jukeboxes

Note: You get a continuous cord that is the total of the number of units (in feet or 30.5cm) ordered - we don't cut it into 1 foot (30.5cm) sections ;-#)#

Belden 8454 four conductor wire per foot

  • $14.95 USD
