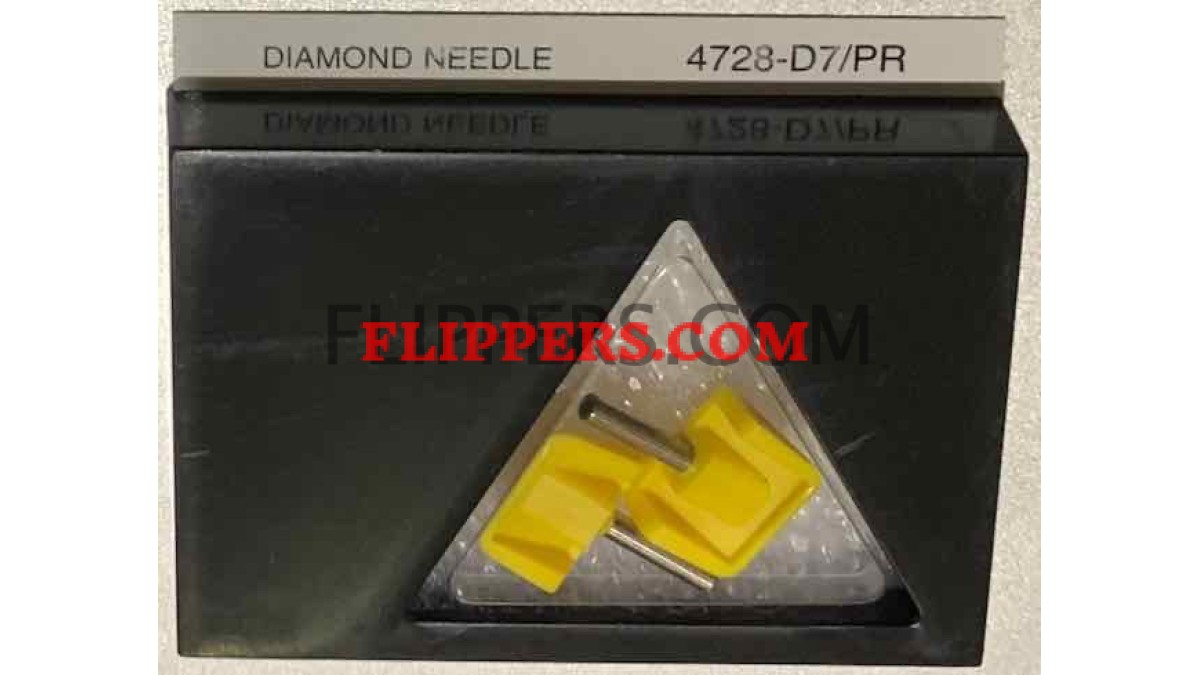

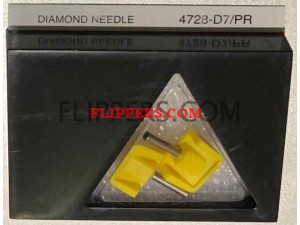

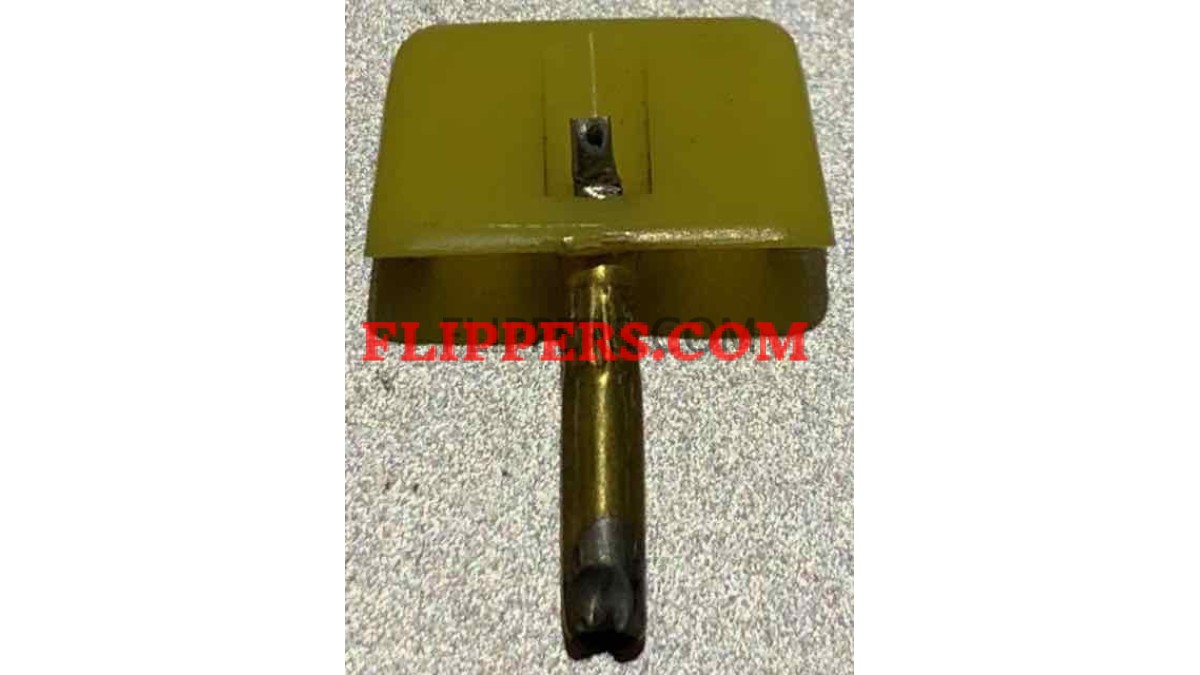

Needle 4728-D7 for Seeburg Stereo Jukeboxes Pair

Pair of diamond tipped stylus - yellow - for all stereo Seeburgs after 1967: SS-160, Vogue II, LS1/2, LS325, USC1/2, SPS160, SPS2, STD1/2/3/4, SQS-2, SQS-160, SMC1/2/3, FC1/2, Marauder, and VMC200. Also the home stereo consoles.

Click for PDF on extracting the cartridge for replacing the stylus/needles...

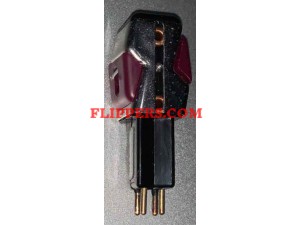

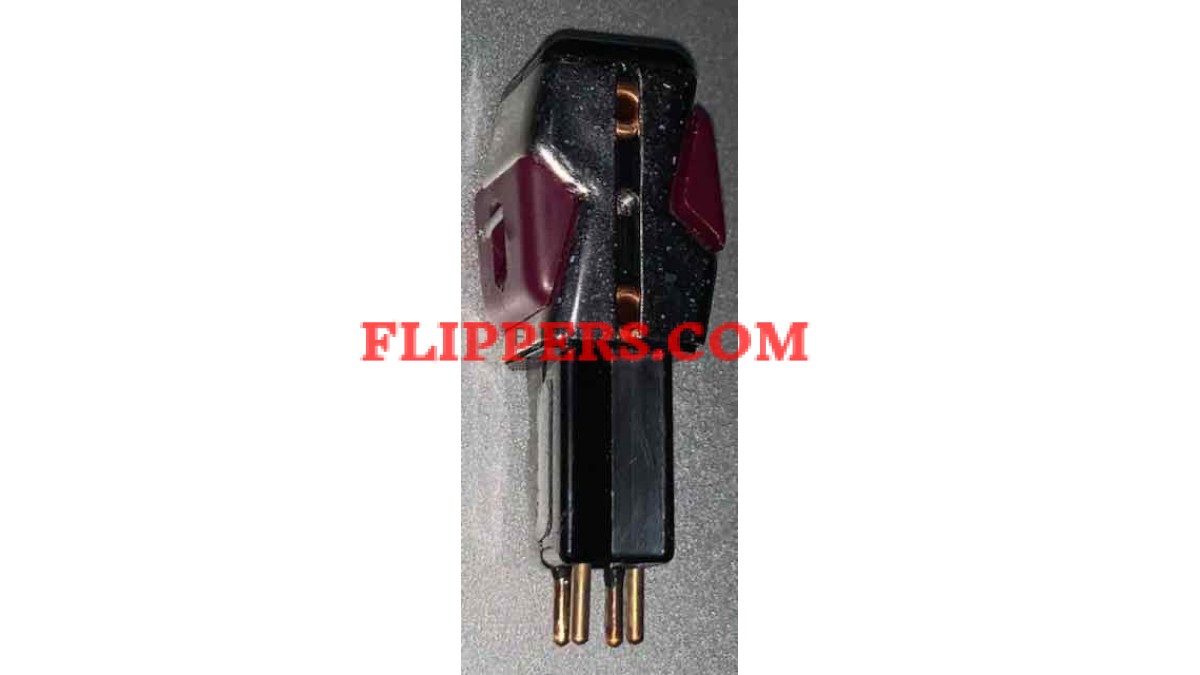

Used in the cartridge (253718 - Magnetic Pickup) shown in the third image. Seeburg "Showcase Jukeboxes V-204 cartridge".

Replaces:

• 253793 Seeburg Armature Assembly with Sapphire (2)
• 253794 Seeburg Armature Assembly with Diamond (2)
• Seeburg 253719 and 253772
• Pickering 340D-7 & 340S-7

Tip material: Polished conical diamond

Tip radius: .0007

Tracking force: 1.5 - 3 Grams

Speeds: 16, 33, & 45 RPM
